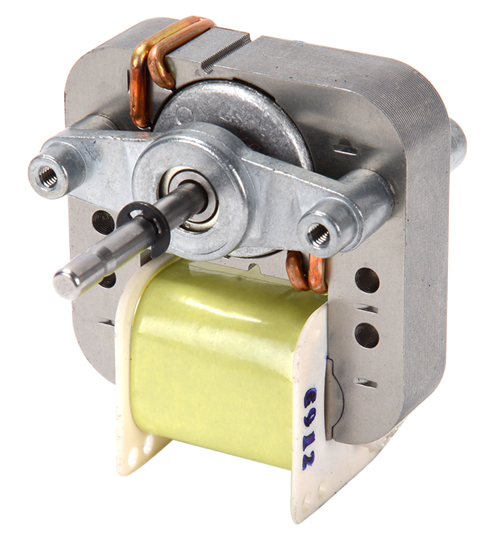

罩极电机定子组件由铁芯和主副绕组组成，副绕组即短路环，其功能是产生磁势，并在气隙中形成旋转磁场。转子由铁芯和鼠笼导条组成，鼠笼导条就是转子绕组的导体，其功能是当它切割气隙旋转磁场时产生感应电动势，形成感应电流和电磁转矩，实现电能和机能的转换。 Single Phase Shaded Pole motor is mainy composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
罩极电机定子组件由铁芯和主副绕组组成，副绕组即短路环，其功能是产生磁势，并在气隙中形成旋转磁场。转子由铁芯和鼠笼导条组成，鼠笼导条就是转子绕组的导体，其功能是当它切割气隙旋转磁场时产生感应电动势，形成感应电流和电磁转矩，实现电能和机能的转换。
Single Phase Shaded Pole motor is mainy composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
产品特点/Characteristics
低噪声、运行可靠、寿命长、无电磁干扰、免维护。
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
产品应用/Application
烤箱、微波炉、电壁炉、空调、冰柜、洗衣机、暖风机、换气扇、加湿器、水泵、空气清新器、抽油烟机。
Ovens, microwave ovens, air- conditioners, freezers, washing machines, fan heaters, ventilators,humidifiers, water-pumps, air-fresheners, kitchen hood.
产品系列/Series
YJ48，YJ58，YJ61，YJ62，YJ84
产品通用特性参数/Product General Performance Parameters
| 电压/Voltage | 100-240VAC |
| 功率/Frequency | 5-100W |
| 频率/Power | 50/60HZ |
| 绝缘等级/Insulation Class | A/E/B/F/H |
| 噪音/Noise | <43Db(A) |
| 寿命/Life | 5000-10000Hours |
| 铁芯厚度/Core Thickness | 8-40mm |
| 轴径(mm)/Shaft Diameter(mm) | Ф2.5，Ф3.17，Ф4.0，Ф4.6，Ф5.0，Ф5.5，Ф6.0，Ф6.35 |
额定电压/Rated Voltage:100-240VAC
堆叠高度/amination:12-40mm

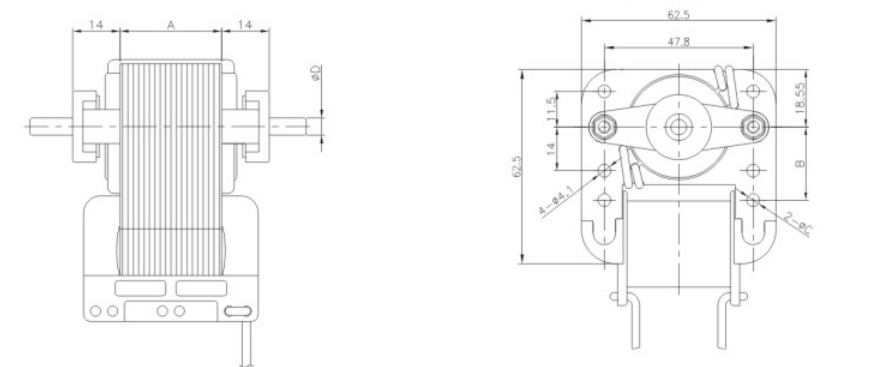

产品尺寸/Size:84x67mm
时间寿命/Life:5000-10000Hours
典型应用/Application:抽油烟机 Kitchen Hood

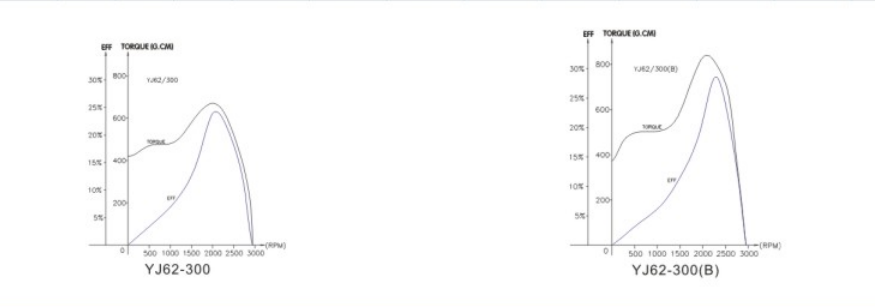

| 型号/MODEL | 尺寸/DIMENSIONS | 额定电压/RATED VOLT | 额定频率/RATED Hz | 空载FREE LOAD | 负载/ON LOAD | |||||||
| 电流/CL JRRENT A | 转速/SPEED R.P.M. | 输入功率/INPUT W | 输出功率/OUTPUT W | 转速/SPEED R.P.M. | 力矩/TORQUE G.CM | 电流/CURRENT A | ||||||
| YJ62/300 | 25 | 23.5 | 4.1 | 230 | 50 | 0.45 | 2930 | 55 | 15 | 2400 | 600 | 0.55 |
| YJ62/300 | 25 | 19.2 | 5.1 | 230 | 50 | 0.45 | 2930 | 55 | 15 | 2400 | 600 | 0.55 |
| YJ62/300 | 25 | 27.5 | 4.1 | 230 | 50 | 0.45 | 2930 | 55 | 15 | 2500 | 600 | 0.55 |
| YJ62/300(B) | 30 | 23.5 | 4.1 | 230 | 50 | 0.5 | 2940 | 65 | 19 | 2500 | 750 | 0.6 |
| YJ62/300(B) | 30 | 19.2 | 5.1 | 230 | 50 | 0.5 | 2940 | 65 | 19 | 2500 | 750 | 0.6 |
| YJ62/300(B) | 30 | 27.5 | 4.1 | 230 | 50 | 0.5 | 2940 | 65 | 19 | 2500 | 750 | 0.6 |
